IQ QZ2101-840 Smart Plug Guide
Specifications:
- Input Power: 110-230 VAC, 50/60Hz
- Max current: 13A
- Radio Frequency: 908.4/916 MHz
- Wireless distance: Up to 40m indoor
- Operation temperature: 32-107.6˚F
Installation Steps:
- Put your security panel into Z-Wave learn mode.

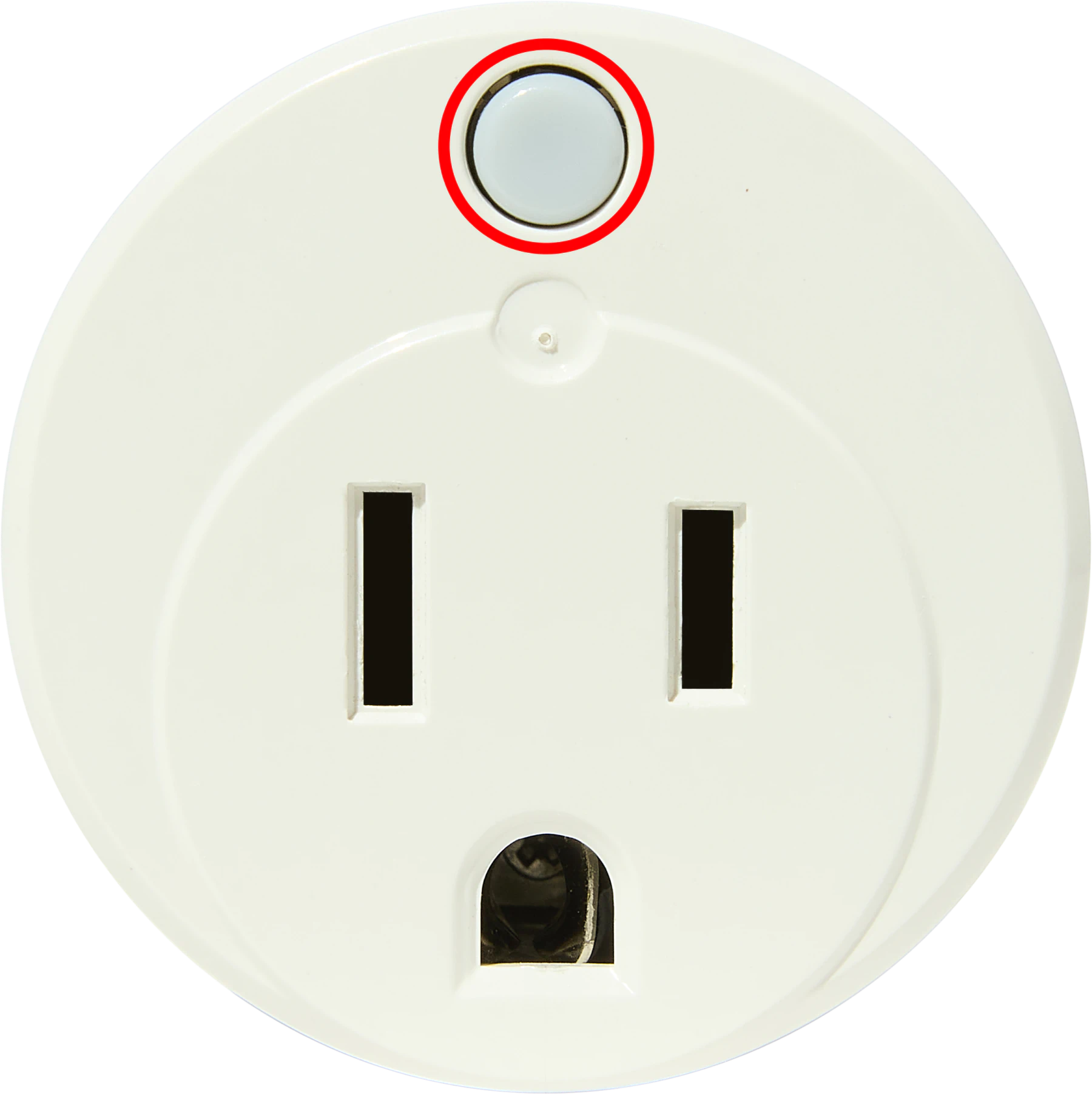

- At the selected location, plug in the Smart Plug and press the button on the front of the plug 3 times.
- The Smart Plug will now be paired to your panel. For detailed instructions on how to put your panel into Z-Wave learn mode, click here.
For additional information relating to your device, click the following link to view the original manufacturer's user guide or installation manual: IQ QZ2101-840 User Manual
