IQ Panel 2—Sensor Test Guide

Testing your sensors regularly ensures your Brinks Home™ system is working properly. Here's how to run a sensor test and what to do if something doesn't seem right.

Step-by-Step Instructions:

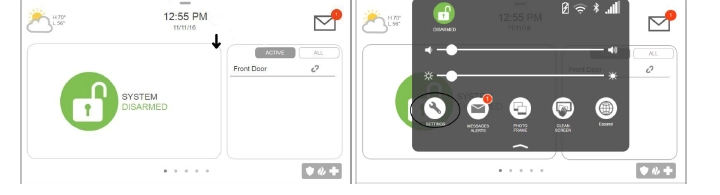

  1. Swipe down from the top of the panel screen to access the settings tray, then tap Settings.

  2. Press Advanced Settings, then enter your master code.

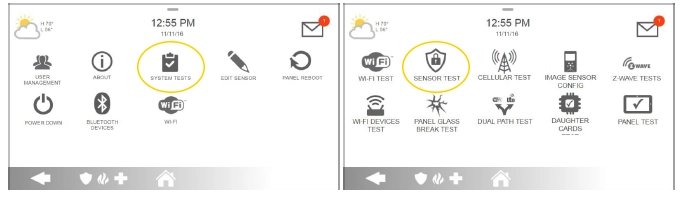

  3. Select System Tests, then Sensor Test.

  4. Trigger each sensor (open doors/windows or move in front of motion sensors). The panel will beep and show the signal strength for each sensor.

  5. Once all sensors are tested, press Back or Home to exit the test screen.

Video Instructions:


If you need further assistance, text us at 469.513.8685 or chat with us 24/7 for an immediate response.
